Stature Estimation

Note

This page describes how to perform and visualize stature estimation using different anthropological methods in the CoRA platform.

Accessing Stature Estimation

From the left navigation:

Left Sidebar Menu → Visualizations → stature Estimation

This section enables users to estimate the stature of an individual using specific skeletal remains and reference methods.

Select Parameters

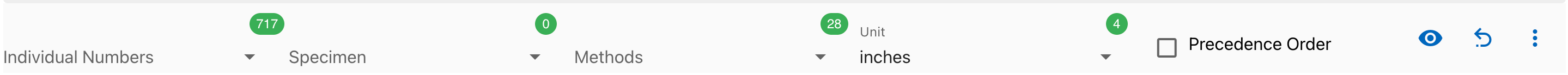

Use the filter bar at the top of the page to configure your input:

• Individual Numbers: Select the unique ID of the individual (e.g., CIL 2003-116-G-01).
• Specimen: Choose a specific bone specimen associated with the individual.
• Methods: Select a stature estimation formula (e.g., Trotter and Gleser 1952-WF).
• Unit: Choose the measurement unit (inches or centimeters).
• Precedence Order: Toggle to apply the precedence order.

This module estimates the likely height of an individual based on bone measurements and selected forensic estimation formulas.

Two Approaches to Stature Estimation

Approach 1: Single Specimen

1. Select:
2. Individual Number
3. Specimen
4. Method

5. Unit (inches or centimeters)

6. Click the (eye icon) to generate a visual representation of the estimated stature based on the selected single specimen.

7. The result appears in the Visualization tab, showing:

8. Skeleton aligned to a height chart
9. Height estimation banner (e.g., ± 67.97 inches)

This approach is ideal for quick, visual insights using one specific bone.

Approach 2: Specimens in Individual

1. Select:
2. Individual Number
3. Method

4. (Leave specimen unselected)

5. The system automatically uses all associated specimens for the selected individual.

6. Results: A - Visualization tab shows the average stature estimation.

Best suited for comprehensive analysis across all available skeletal data for an individual.

B - Stature Calculations tab shows the formulas, calculations, maximum, minimum, average Height for all the specimens of the selected specimen. - Indivudal number - Specimen key - Method name - Equations - Measurement of each specimen - Minimum, Maximum, and Average height for the individual

1. Precedence Order

The Precedence Order checkbox allows users to prioritize the order of specimen usage.

• Enabling this option will:
• Automatically arrange specimens according to the precedence hierarchy.
• Affect both the visualization and calculation outputs.
• Ensure consistency in methods that rely on preferred bone types.

Use this feature when you want consistent and scientifically prioritized height estimations based on bone type.

Interface Overview

Filter Panel Options

• Individual Numbers: e.g., CIL 2003-116-G-01
• Specimen: (Optional for aggregated view)
• Methods: e.g., Trotter and Gleser 1952-WF
• Unit: Inches or Centimeters
• Precedence Order: Toggle to apply bone prioritization.

Visualization Tab

Displays a visual skeleton aligned with a height chart based on selected method.

Stature Calculations Tab

Provides a tabular view of:

• Indivudal number
  • Specimen key
  • Method name
  • Equations
  • Measurement of each specimen
  • Minimum, Maximum, and Average height for the individual

This module supports detailed forensic reporting and anthropological research by leveraging scientifically validated height estimation models.

---
