DNA Profile
Create DNA
Specimens which have had a DNA sample successfully completed will
have an associated DNA Profile. The profile contains all relevant DNA attributes and are editable via
(appropriate permissions required)
The fields associated with a DNA are:
- DNA Sample Number
- Lab
- External Case id
- BTB Request Date
- BTB Result Date
- Recommended for Resampling (Checkbox)
- Disposition
- Sample Condition
- Weight Sample Remaining
The bolded fields are required. Below are some fields with their validation rule
| Attributes | Data Type | Size | Validation Rule | Required/Optional |
|---|---|---|---|---|
| DNA Sample Number | Alphanumeric | 32 chars | Can only contain letters and numbers | Required |
| External Case id | Alphanumeric | 32 chars | Can only contain letters and numbers | Optional |
| Priority | String | 32 chars | Can only contain letters, numbers, dash, space and dot | Optional |
| External Sample Number | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Disposition of Evidence | Alphanumeric | 32 chars | Can only contain letters and numbers | Optional |
| Additional Testing | Boolean | NA | True or False | Optional |
| Priority Date | Date | NA | Can only contain dates | Optional |
| BTB Request Date | Date | NA | Can only contain dates | Optional |
| BTB Result Date | Date | NA | Can only contain dates | Optional |
| Disposition | NA | NA | Either Stored, Consumed or Returned | Optional |
| Sample Condition | NA | NA | Either Stored, Consumed or Returned | Optional |
| Weight Sample Remaining | Numeric | 32 chars | Can only contain numeric value | Optional |
| Resample Indicator | Boolean | NA | True or False | Optional |
| Notes | String | 64 chars | Can contains a string of letters, numbers | Optional |
DNA elements are further divided into Mito, auSTR and Y-STR.

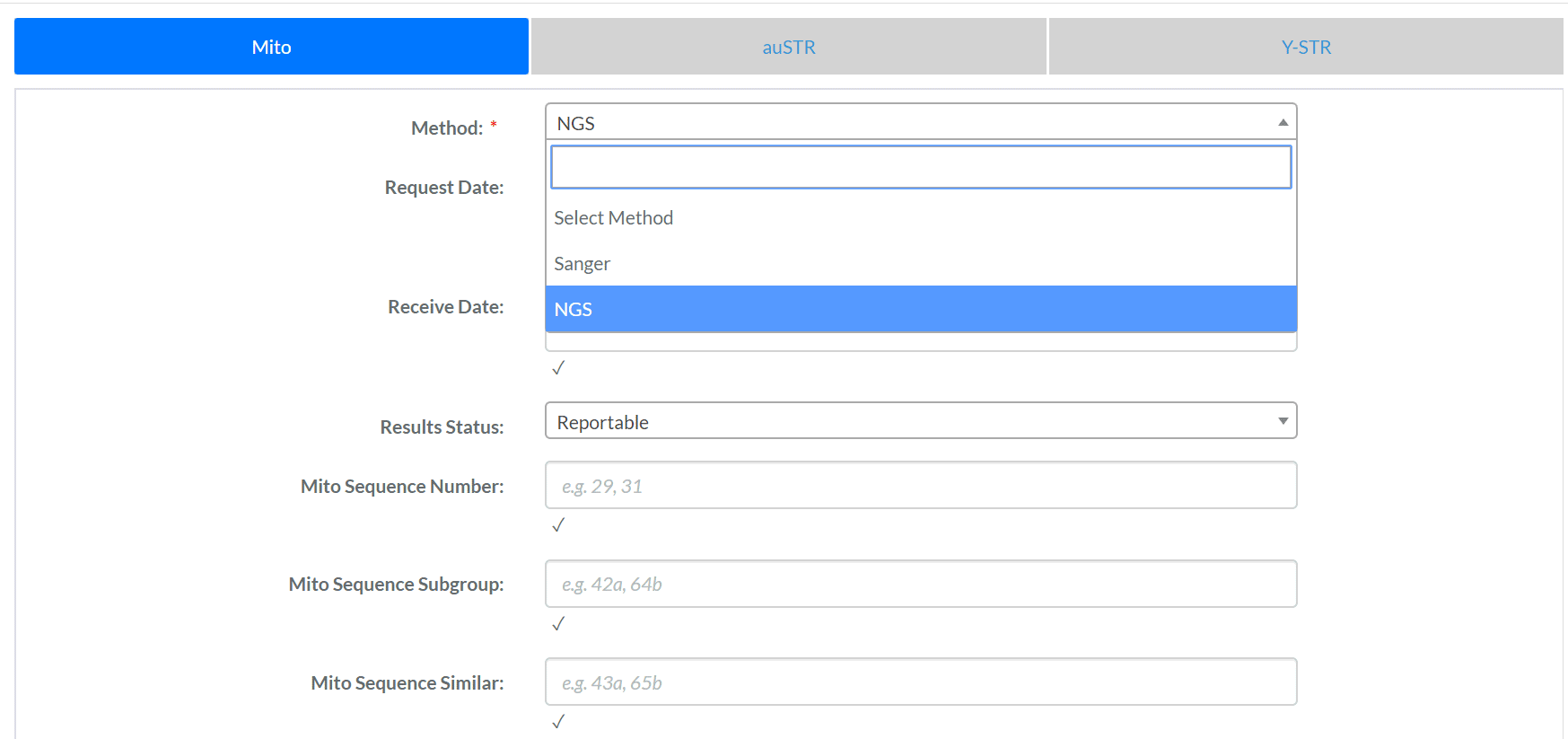

Mito
The elements associated with Mito are:
- Method
- Request Date
- Receive Date
- Results Status
- Mito Sequence Number
- Mito Sequence Subgroup
- Mito Sequence Similar
- Match Count / Population Frequency
- Base Pairs
- Confirmed Regions
- Mito Polymorphisms
- Mito Haplogroup
- MCC Date
The bolded fields are required. Below are some fields with their data type and validation rule
| Attributes | Data Type | Size | Validation Rule | Required/Optional |
|---|---|---|---|---|
| Mito Method | NA | NA | Choose from the options available | Required |
| Mito Request Date | Date | NA | Can only contain date | Optional |
| Mito Receive Date | Date | NA | Can only contain date | Optional |
| Mito Results Confidence | NA | NA | Either Pending, Reportable, Inconclusive, Unable to Assign, Cancelled or No Results | Optional |
| Mito Sequence Number | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Mito Sequence Subgroup | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Mito Sequence Similar | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Mito Match Count | Numeric | 32 chars | Can only contain numeric value | Optional |
| Mito Total Count | Numeric | 32 chars | Can only contain numbers | Optional |
| Mito Base Pairs | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Mito Confirmed Regions | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Mito Polymorphisms | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Mito Haplogroup | NA | NA | Choose from the options available | Optional |
| Mito MCC Date | Date | NA | Can only contain date | Optional |
| Mito Fasta Sequence | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Mito Haplosubgroup | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Mito locus | String | 32 chars | Special characters are not allowed | Optional |
| Mito Num Loci | Numeric | 32 chars | Can only contain numeric value | Optional |

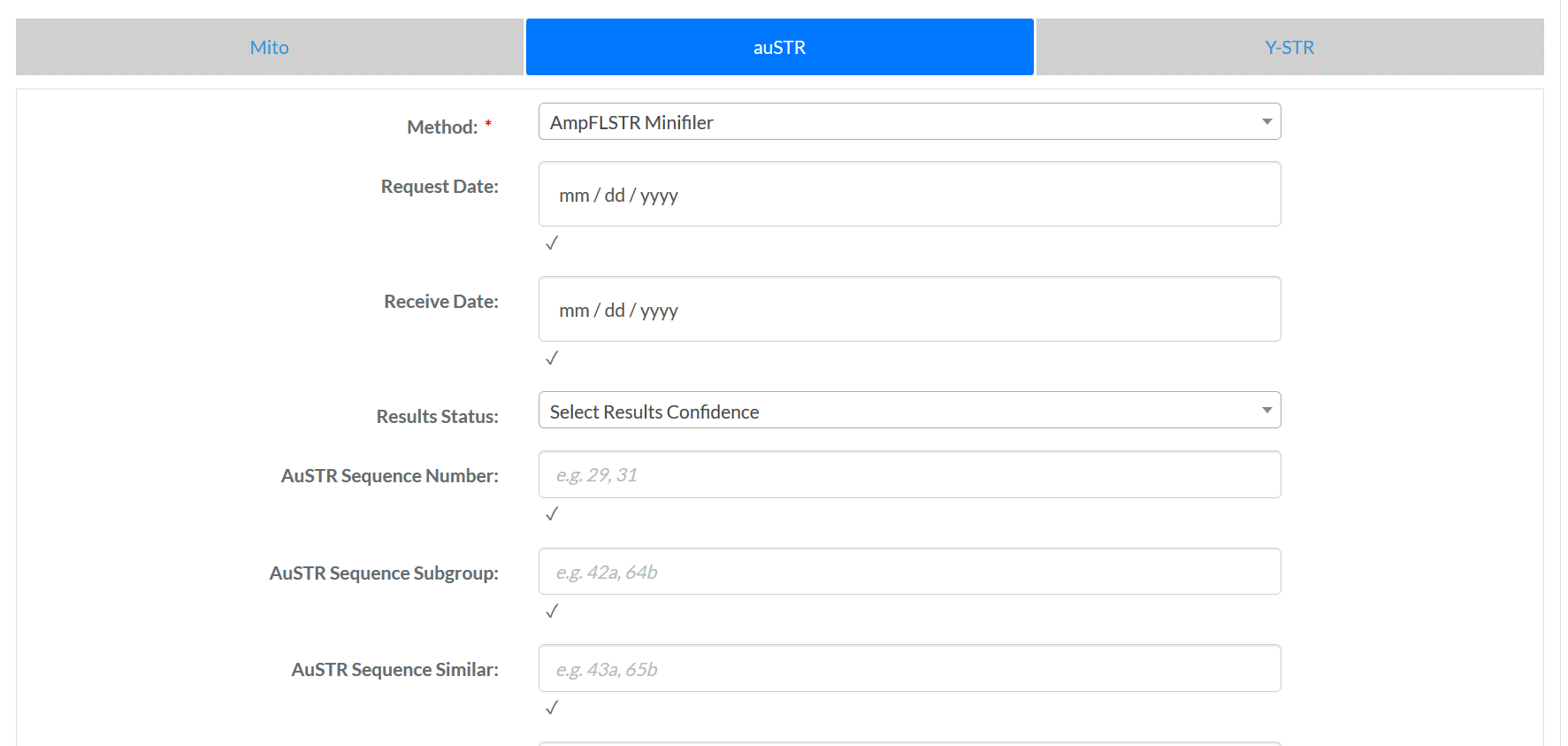

auSTR
The elements associated with auSTR are:
- Method
- Request Date
- Receive Date
- Results Status
- auSTR Sequence Number
- auSTR Sequence Subgroup
- auSTR Sequence Similar
- Number of Loci
- Loci
- MCC Date
The bolded fields are required. Below are some fields with their data type and validation rule
| Attributes | Data Type | Size | Validation Rule | Required/Optional |
|---|---|---|---|---|
| AuSTR Method | NA | NA | Choose from the options available | Required |
| AuSTR Request Date | Date | NA | Can only contain date | Optional |
| AuSTR Receive Date | Date | NA | Can only contain date | Optional |
| AuSTR Results Confidence | NA | NA | Either Pending, Reportable, Inconclusive, Unable to Assign, Cancelled or No Results | Optional |
| AuSTR Sequence Number | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| AuSTR Sequence Subgroup | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| AuSTR Sequence Similar | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| AuSTR Match Count | Numeric | 32 chars | Can only contain numeric value | Optional |
| AuSTR Total Count | Numeric | 32 chars | Can only contain numbers | Optional |
| AusTR loci | String | 32 chars | Special characters are not allowed | Optional |
| AusTR Number of Loci | Numeric | 32 chars | Can only contain numeric value | Optional |
| AusTR MCC Date | Date | NA | Can only contain date | Optional |
Y-STR
The elements associated with Y-STR are:
- Method
- Request Date
- Receive Date
- Results Status
- Y-STR Sequence Number
- Y-STR Sequence Similar
- Match Count / Population Frequency
- Number of Loci
- Loci
- Y Haplogroup
- MCC Date
The bolded fields are required. Below are some fields with their data type and validation rule
| Attributes | Data Type | Size | Validation Rule | Required/Optional |
|---|---|---|---|---|
| Y-STR Method | NA | NA | Choose from the options available | Required |
| Y-STR Request Date | Date | NA | Can only contain date | Optional |
| Y-STR Receive Date | Date | NA | Can only contain date | Optional |
| Y-STR Results Confidence | NA | NA | Either Pending, Reportable, Inconclusive, Unable to Assign, Cancelled or No Results | Optional |
| Y-STR Sequence Number | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Y-STR Sequence Subgroup | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Y-STR Sequence Similar | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
| Y-STR Match Count | Numeric | 32 chars | Can only contain numeric value | Optional |
| Y-STR Total Count | Numeric | 32 chars | Can only contain numbers | Optional |
| Y-STR loci | String | 32 chars | Special characters are not allowed | Optional |
| Y-STR Number of Loci | Numeric | 32 chars | Can only contain numeric value | Optional |
| Y-STR MCC Date | Date | NA | Can only contain date | Optional |
| Y-STR Haplogroup | NA | NA | Choose from options available | Optional |
| Y-STR Haplosubgroup | String | 32 chars | Can only contain letters, numbers, dash and space | Optional |
Element Highlights
Additional skeletal element attributes about the DNA sample can found in the Element Highlights section above the DNA Profile. By default this section is collapsed.
